In the world of subtractive manufacturing, producing standard cylindrical parts is relatively straightforward. However, when engineers design extremely small micro-components or parts with high length-to-diameter ratios, traditional CNC turning centers often hit a physical limitation. The cutting pressure applied by the tool can cause long, slender material to deflect, vibrate, or bend, resulting in poor tolerances and scrapped parts.
To solve this profound engineering challenge, the manufacturing industry turns to a highly specialized piece of equipment the Swiss-type lathe.
What is a Swiss-Type Lathe?
Traditional 2-axis CNC lathes hold the workpiece tightly in a chuck at one end while the cutting tool moves along the spinning material. If the part is exceptionally long, it usually requires a tailstock or a steady rest to support the free protruding end and reduce vibration from the outside.
Swiss-type lathes operate on a fundamentally different mechanical principle. These machines are unique in that the stock material is fed through a guide bushing. The cutting tool is positioned perfectly next to this guide bushing, allowing the tool to cut nearer to the point of support. Because the raw material has no room to bend or deflect under the cutting pressure, this makes them particularly useful for long, slender CNC lathe parts and micromachining.
The Advantages of Swiss Machining
1. Unmatched Precision for Slender Parts By eliminating deflection, Swiss-type lathes can hold incredibly tight tolerances on parts that are needle-like in shape, something that would be nearly impossible on a conventional lathe without excessive manual setups.
2. Complex Multi-Tasking (Done-in-One) Modern Swiss-type lathes are marvels of engineering. Some Swiss-type lathes also come equipped with a second tool head that operates as a CNC mill. This multi-axis capability allows them to perform multiple machining operations—such as milling, drilling, and tapping—without having to move the workpiece to a different machine. Finishing complex turned and milled parts in a single setup makes Swiss-type lathes extremely cost-effective for complex turned parts.
3. High-Volume Production Efficiency Because Swiss lathes automatically feed long bars of stock material through the guide bushing, they are perfectly suited for automated serial production. Once programmed and set up, these machines can continuously produce thousands of flawless micro-parts with minimal human intervention, dramatically lowering the cost per unit.
Industry Applications for Swiss-Turned Parts
Because of their unique capabilities, Swiss-type lathes are indispensable in high-tech industries that demand miniaturization and flawless precision:
Medical and Dental: Surgical instruments, bone screws, titanium dental implants, and tiny sensor housings.
Aerospace and Defense: Aviation fasteners, custom probes, and electrical connector pins made from robust metals like titanium.
Electronics: Micro-pins, spacers, and highly conductive copper or brass terminals.
Partner with CS Rapid MFG for Your Precision Parts
Whether you are designing robust transmission shafts or microscopic medical pins, choosing the right CNC machining process is vital. [If you want to explore the full spectrum of subtractive manufacturing, read our Ultimate Guide to CNC Machining to see how we scale from prototypes to mass production].
At CS Rapid MFG, we are dedicated to bringing your most challenging designs to life. Established in 2008 and located in Dongguan, China, we are a leading global manufacturer of rapid prototyping and precision CNC machined custom parts. We strictly adhere to ISO quality standards and have received ISO 9001:2015 certification, meaning our production lines feature advanced technologies that deliver precision and accuracy.

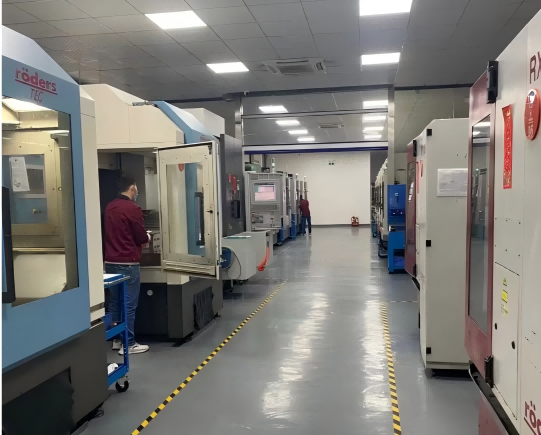

Our facility currently houses more than 80 domestic and foreign high-precision CNC processing machines, supported by a team of more than 100 skilled and experienced professional technicians.
Why choose CS Rapid MFG?
Unbeatable Speed: We are committed to shortening pilot production cycles, offering parts made in 5 days and delivered on time.
Total Flexibility: CS Rapid MFG does not have a minimum order quantity (MOQ). You can order a single rapid prototype or scale up to high-volume production.
Expert Engineering: Once receiving your inquiry, we will provide you with a preliminary DFM report to ensure your parts are perfectly optimized for production.
Proven Track Record: Over 15,000 projects have been successfully delivered to our satisfied customers worldwide.
Ready to turn your micro-machining challenges into success stories? Contact CS Rapid MFG today and share your 2D/3D files for an instant quote within 12 hours.
